SPC Floor Line Dust Extraction System

  • HALLMARK
Availability:

Product Description

SPC Floor Line Dust Extraction System Overview

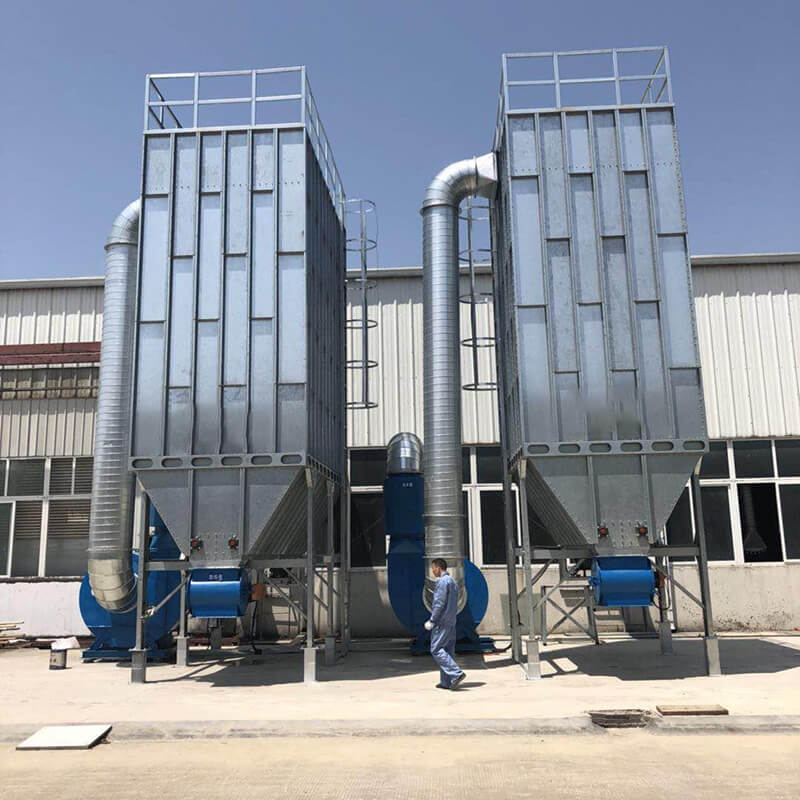

dust extraction line (5)

It is used for collecting and handling all kinds of dust from double end tenoner and multi-rip saw machine,or other equipment.


Dust Extraction System careful attention to housing design details,such as inlet and outlet proportions, collecting tube spacing and dust discharge boot design,assures uniform gas distribution, and powder flow to each individual collecting tube for maximum design efficiency.


HallMark is engaged in the design, manufacture, installation and commissioning of central dust removal (dust collection) systems for flooring Industry .





SPC Floor Line Dust Extraction System Configuration


NO. Machine Name Qty.
1 Dust collector body 1 set
2 Double row screw machine 1 set
3 Automatic feeder 1 set
4 Fan 1 set
5 Main motor 1 set
6 Galvanized Pipe 1 set
7 Pneumatic valves 1 set
8 Silencer 1 set
9 Control System 1 set

(Above configuration just for reference,will design according to actual situation)



SPC Floor Line Dust Extraction System Photos



dust extraction line (2)
dust extraction line (3)

dust collection system 1
dust collection system 2



SPC Floor Line Dust Extraction System Main Parameters


Air (m3/h) 50000 ~ 60000

Air Speed (m/s)

35-40

Total power (KW)

81

Overall dimension (mm)

L 5670 * W 2510 * H 8570


(Above technical parameters just for reference,will design according to actual situation)




Dust Extraction System Feature


  • The dust collector system in the workshop adopts an assembled, square and negative pressure design.


    Its advantages:

    1)The pulse cleaning system adopts self-coupling and pressure reduction control, which has better cleaning effect, longer service life of cloth bags, and is not easy to be blocked by ash.


    2)The galvanized sheet has a beautiful appearance, and the modularization is easy to add equipment later.


  • Multiple fans can be used simultaneously or individually.


  • The fan adopts negative pressure, which has a long service life and avoids fire hazards caused by inhaling debris.


  • The bottom adopts screw conveyor and unloader.




SPC Floor Structures


未标题-1-02




 SPC Floor Advantages

spc floor advantages


  • ECO-friendly

    SPC floor uses calcium powder and PVC as the main raw materials, non-toxic and renewable resources


  • Fire Retardant

    Even if something burns on the SPC floor ,such as cigarette or a lighter,it will not be affected.


  • Wear-resistant

    There is a wear-resistant layer on the surface, its wear-resistant revolution can reach 8000-16000 . Ordinary laminate flooring are generally only 1200-9000 revolutions.


  • Waterproof and Dampproof

    SPC floor produced by the SPC floor machine solves the problem of rotting, swelling and deformation of wood products due to moisture absorption and water absorption in the environment, suitable for any place.


  • Easy Maintenance

    Maintenance-free, easy to clean, saving later maintenance costs.


  • Easy to clean

    Wear-resistant layer has special skid resistance,feet feel more astringent when floor is wet.




What is the whole SPC Flooring Production Line Include?

spc


  1. Mixing machine

    Mixer unit combines hot mixer with cold mixer process, and the hot mixer material automatically enters the cold mixer to cool it, eliminate the residual gas, and prevent caking.


  2. SPC floor extrusion line

    The SPC floor extruder converts the mixed raw materials into the SPC core layer by the double screw and T-die, and laminating the wear-resistant layer and decor film on the core layer with emboss roller, and finally form the large board of the SPC floor.


  3. UV coating line

    UV coating line is designed for coating UV varnish on SPC floor,WPC floor,WPC floor,LVT floor,PVC marble sheet,PVC cabinet board etc,which can give the feathers of anti scratch,bacteria roof,stain resistance.Each Coating roller controlled by individual motor to make exact coating quantity and effect.


  4. Cutting and double end tenoner line

    Usually, the multi-rip saw is connected with the double end tenoner(DET) line. The multi-rip saw is used to cut the SPC large board into several small pieces, and then turn over the board and enter the DET line to do the click profile on the long and short sides. It can be matched with automatic feeding system to reduce labor.


  5. V groove painting line (optional)

    Cut some of the upper edge of the SPC floor at 30/45°, and then paint it. After paving, the seam will show a V-shaped notch. The edge color is rich and layered, and it is more beautiful.


  6. IXPE / EVA laminating line (optional)

    Bond the underlayment materials on the backside of the SPC flooring to improve the ability of sound insulation.


  7. Auto packing and Stacking line(optional)

    It can automatically fold the carton, put a certain number SPC flooring into the carton and pack it automatically, and finally stack it with a conveyor or robot.



Our Projects



spc-flooring-production-line



Our services



Pre-sale

●Provide the information in time at customer requirement and make reasonable proposals and budgeting for whole flooring production line.

●Give technical support for the customer's renovation of old facilities for free

●Provide one-stop service and support to the customer's other equipment


●Provide raw material related consultation


In-sale

●On-site planning for the customers by professional engineer



●Valuable advice and recommendations on the purchasing of other auxiliary accessories and raw material



●Free training for operators



After-sale

●For all sold products ,free replacement of quality problems within the warranty period,provide lifetime keep-up and maintenance service


●All-around keep-up,transportation and transformation of equipment


●Provide production and technical advisory service


●Provide on-site installation, debugging , training and remote guidance services,






Why choose HallMark as your supplier?



  1. Rich experience and professional design


    We have 15 years experience in flooring industry,also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet  safety production.



  2. Competitive price


    HallMark has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.



  3. Timely after-sale service

    We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions within 8 hours.



  4. One-stop solution


    We provide one-stop service, including market analysis and professional technical consultation,whole SPC  flooring production line, raw materials ,Equipment installation, personnel training,Professional after-sales service team,Renovation of old equipment,make turnkey projects.



  5. Quality control


    Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.



  6. Customized


    HallMark's engineer team will design the layout according to customer’s factory space and production requirements.
