Mixing Machine

  • HALLMARK
Availability:

Product Description

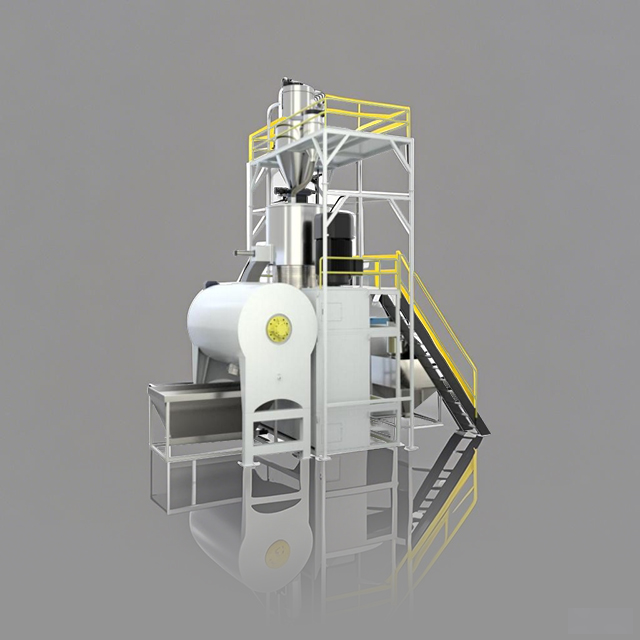

Mixing Machine Overview

The PVC mixer unit is for mixing PVC powder, CaCO3 and other additives. This equipment is widely used in PVC sheet production and profile production.


The high speed PVC mixing machine is composed of plastic mixer (hot mixer), cooling mixer and control cabinet.

It will guarantee the mixer could use for long time under the high friction.The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material leakage.


Now, it has gradually replaced the low speed mixing machine, widely used in the production of all kinds of plastic industry.High quality, good price and reliable performance. Hallmark expects to be your mixer machine manufacturer.


Mixing Machine Video





Mixing Machine Configuration


NO. Machine Name Qty.
1 Small bag feeding statio 1 set
2

Vacuum pump

1 set
3 Vacuum feeding system 1 set
4

Mixing unit ( hot and cool )

1 set
5

Exhaust dehumidifier for mixing unit

1 set



Mixing Machine Photos


mixer machine 1

Horizontal mixer

Mixer machine 2

Vertical mixer

Mixer

Internal structure



Mixing Machine Main Parameters



500/1000 800/2500 1000/3000 800*2/4000
Total capacity (L,hot/cool) 500/1000 800/2500 1000/3000 1600/4000
Effective capacity (L,hot/cool) 375/640 520/1500 650/1950 1040/2700
Working speed (r/min,hot/cool) 860/100 750/80 600/65 750/80
Heating/Cooling method Electric or self-friction /  water
Mixing time (min) 8-15 8-15 8-15 8-15
Power(kw) 75/15 110/22 132/30 2-83/37
Weight(kg) 4500 7000 8000 9500


Mixing  Machine Information

Device List of  Laminate Flooring Packing Machine and supply scope

No.

Item

Qty.

Parameters




1




Vacuum Feeder




1 Set

1)Made of stainless steel SUS304 2mm.

2)high-quality square tube support frame, combined, easy to disassemble and assemble.

3)With air hammer, wind blasting and material level meter, it is used to clean the silo and display.


2


Mixing Unit

1000/3000


1 Set

Made of stainless steel SUS304, and the bottom of the pot is stamped and formed at one time.

The container cover adopts ZL102, the inner surface is polished,All use pneumatic opening.



3



Screw Feeder



2 Sets

1)The part in contact with the material is SUS304, b=2mm, the rest is carbon steel;

2)Flange connection, with exhaust port;

3)Feeding screw diameter φ159, motor power 5.5kW



4



3 m⊃3; Bin



1 Set

1) one large bin of 3.0 cubic meters, made of 304 steel.

2) Carbon steel support, body.

3) Plate thickness 3.0mm.



Auxiliary Machinery For SPC Floor Mixer Unit



Screw feeder

Screw feeder

Parts Flange connection, with exhaust port,Convey the mixed raw materials to the Extruder Parts Flange Connection, with exhaust port.

Silo

Silo

Carbon steel support, body.Used to store raw materials that have been dried and mixed

additive dosing machine

Additive dosing machine

Operation and maintenance is convenient,and this system is stable ,reliable and efficient.



Mixing Machine Characteristics


(1)Advanced design, easy to operate, safe and reliable.


(2)Small volume, light weight, high efficiency, low energy consumption, low noise.


(3)Purpose and scope of application

In plastic, rubber, dyes, food, daily chemical and other industries are widely used in kinds of material mixing, stirring, drying, coloring.It is one of the necessary equipment of plastic factory.


(4)Technological process

metering according to the ratio of raw materials → hot mixing by high-speed mixer (hot mixing temperature: 125 ℃, the function is to mix all kinds of materials evenly and remove the moisture in the material) → enter cold mixing (cool the material to prevent caking and discoloration , cold mixing temperature: 55℃.) → Mix the material uniformly by cooling.



SPC Floor Structures



未标题-1-02




 SPC Floor Advantages


spc floor advantages


  • ECO-friendly

    SPC floor uses calcium powder and PVC as the main raw materials, non-toxic and renewable resources


  • Fire Retardant

    Even if something burns on the SPC floor ,such as cigarette or a lighter,it will not be affected.


  • Wear-resistant

    There is a wear-resistant layer on the surface, its wear-resistant revolution can reach 8000-16000 . Ordinary laminate flooring are generally only 1200-9000 revolutions.


  • Waterproof and Damp-proof

    SPC floor produced by the SPC floor machine solves the problem of rotting, swelling and deformation of wood products due to moisture absorption and water absorption in the environment, suitable for any place.


  • Easy Maintenance

    Maintenance-free, easy to clean, saving later maintenance costs.


  • Easy to clean

    Wear-resistant layer has special skid resistance,feet feel more astringent when floor is wet.
