800mm to 1200mm
900mm to 1500mn
400mm to 1000mm
15 to 50 stacks/hour

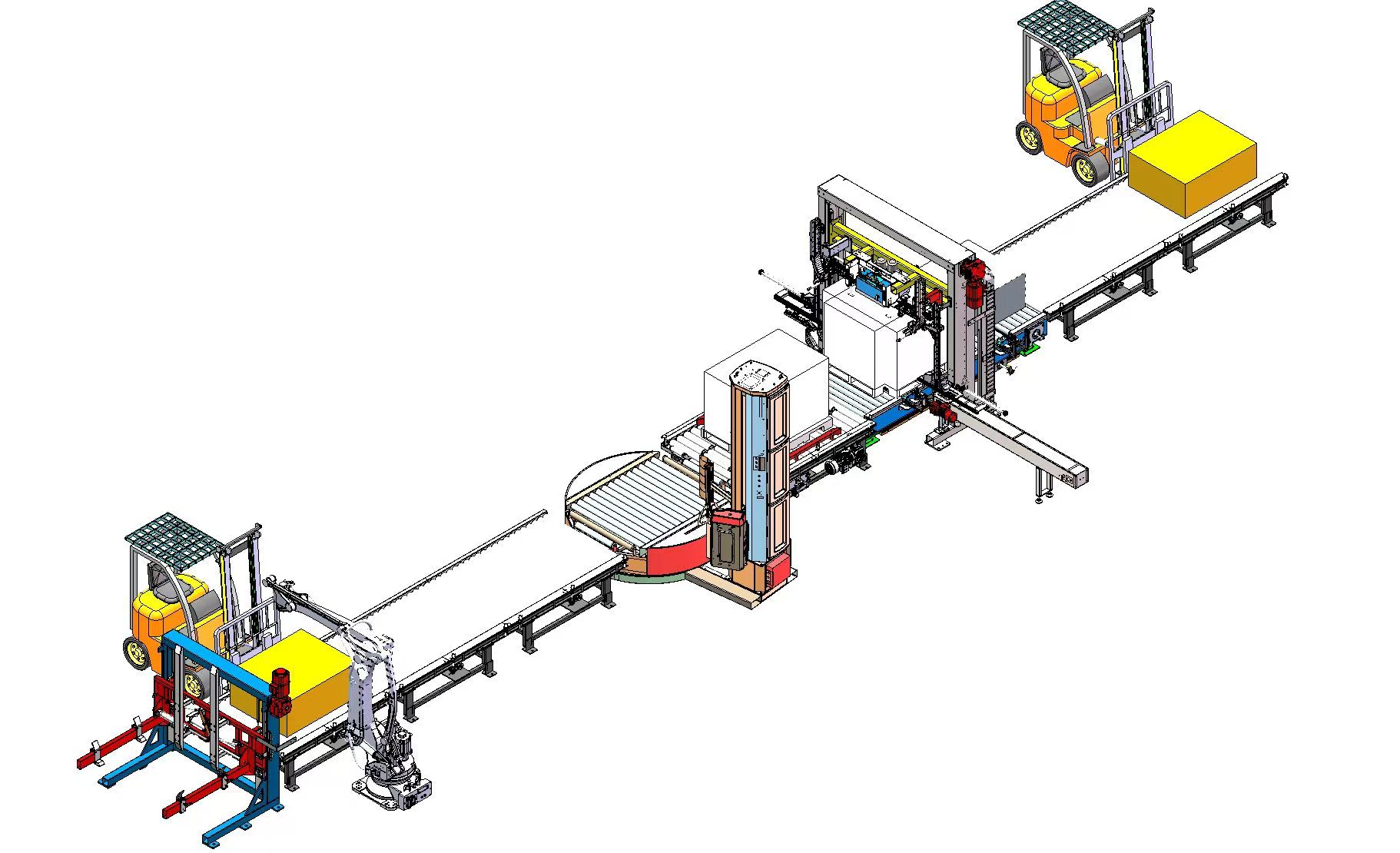

Product Description
The flooring automatic packaging line alletizes the already packed foors, and then completes film wrapping packaging, film wrapping packaging, and tape wrapping packaging. It can be equipped withautomatic tray supply, film wrapping vertical corner protectors on all four sides, and tape top horizontalcorner proteetors.
4.
| Item | Parameters |
| Product width | 800mm to 1200mm |
| Product length | 900mm to 1500mm |
| Product height | 400mm to 1000mm |
| Capacity | 150 to 50 stacks/hour |
Multi-Flooring Compatibility:One system for various flooring types and sizes.
Increased Efficiency:High-speed operation reduces manual labor and boosts productivity.
Consistent Quality:Uniform bundle formation and tight, secure packaging every time.
Protection & Presentation:Minimizes product damage and improves presentation for retail or export.
Flexible & Customizable:Settings adjustable for different bundle sizes, wrapping types, and production speeds
Data Integration:Can be linked with ERP systems for smart production tracking and warehouse management.
1.Automatic Counting & Stacking System
Accurately counts and stacks boards into uniform bundles based on predefined settings (e.g., number of panels or bundle height).
2.Bundle Pressing Station (Optional)
Gently compresses the bundles for solid packing—especially useful for solid wood and SPC flooring to eliminate gaps and improve wrapping line.
3.Film Wrapping Machine
Wraps each bundle in shrink film or stretch film.
Ensures protection against dust, moisture, and scratches during storage and transit.
4.Shrink Tunnel (if shrink film is used)
Applies heat to shrink the film tightly around the bundle for a neat, sealed finish.
5.Strapping Machine (Optional)
Applies PET or PP straps to strengthen the packaging—ideal for heavy bundles and export flooring packaging Line.
6.Edge Protector Insertion (Optional)
Adds corner or edge guards to prevent damage from handling and strapping.
7.Outfeed Conveyor & Palletizing Zone
Moves the finished bundles to the pallet station, where they are stacked manually or by robotic systems for storage or shipment.
Laminate Flooring – Lightweight, scratch-sensitive surfaces requiring clean, tight packaging.
Solid Wood Flooring – Heavier, natural wood planks needing strong structural support and moisture protection.
SPC Flooring – Rigid, waterproof planks requiring dustproof, impact-resistant packaging.
Engineered Wood Flooring – Multi-layer wood with a fine surface, needing protective film and gentle handling.
Other Composite Flooring – Including LVT , WPC , and hybrid materials.
1.What types of flooring can this packaging line handle?
Laminate flooring
Solid wood flooring
Engineered wood flooring
SPC (Stone Plastic Composite) flooring
LVT (Luxury Vinyl Tile) flooring
WPC (Wood Plastic Composite) flooring
2.What are the advantages of using an automatic packaging line for flooring?
Consistent quality: Ensures uniform packaging, reducing product damage.
Cost-effective: Lowers long-term operational costs.
High speed: Improves throughput and production capacity.
Customizable: Can be tailored to specific product dimensions and packaging materials.
3.What packaging materials can be used with this line?
PE shrink film
BOPP film
PVC film
Cardboard corner protectors
Labels and barcodes (optional integration)
4.Is it compatible with shrink wrapping?
Yes, the line can include a shrink wrapping system with integrated heat tunnels for tightly sealed and durable packaging.
5.Can the packaging line be customized for different product sizes?
Yes. The system can be adjusted or configured to handle various product lengths, widths, and thicknesses. Optional auto-adjustment features are also available for handling mixed-size batches.
6.What is the typical packaging speed?
Depending on the model and configuration, the packaging line can process between 8 to 20 packs per minute, depending on product dimensions and wrapping complexity.
