Product Description

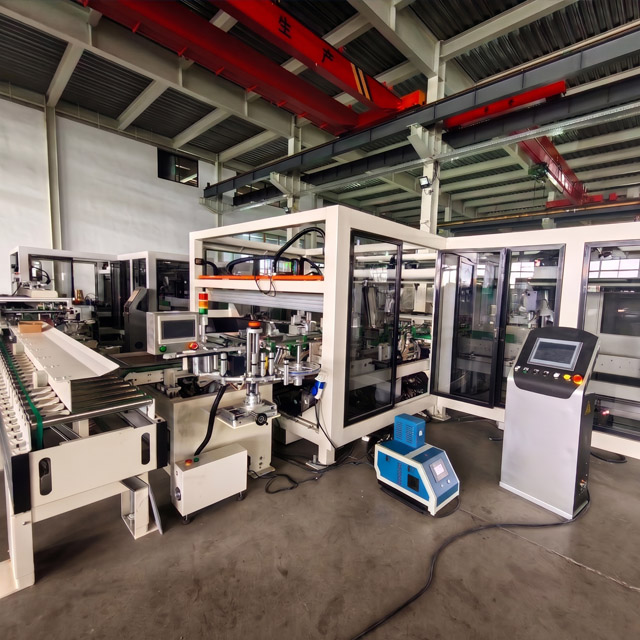

The Automatic Flooring Carton Packing Machine is designed for efficient and consistent carton packaging of SPC, LVT, PVC and other compatible rigid flooring products.
With a rated packing capacity of 10–12 cartons per minute, the system combines automatic carton feeding, flooring loading, carton forming and hot melt glue sealing in a coordinated packaging process.
Its modular mechanical design, PLC control system and adjustable packaging stations allow manufacturers to handle different carton specifications with less manual intervention.
We also provides customized flooring packaging solutions based on product dimensions, carton design, production capacity and factory layout.
| Parameter | Specification |
| Rated Capacity | 10–12 Cartons/Min |
| Carton Length | 600–1530 mm |
| Carton Width | 120–310 mm |
| Carton Height | 40–120 mm |
| Carton Magazine Capacity | More than 250 blanks (3 mm thick) |
| Hot Melt Glue Guns | 5 |
| Total Installed Power | 34.5 kW (including palletizing) |
Flooring Stacking and Positioning
Flooring planks are stacked and aligned according to the required packaging quantity before entering the machine.
Automatic Flooring Infeed
The flooring stack is transferred by roller conveyor to the packaging station.
Automatic Carton Feeding
A vacuum suction mechanism picks individual carton blanks and transfers them into position through a linear drive system.
Flooring Loading and Carton Forming
The feeding mechanism pushes the flooring stack into the carton while the forming mechanisms fold the carton sides and edges.
Hot Melt Glue Sealing
Five glue guns apply hot melt adhesive at the designated sealing positions. The forming mechanisms press the carton into its finished shape.
Finished Carton Discharge
Sealed cartons leave the machine through the outlet conveyor and can be transferred to an automatic palletizing system.
FAQ of Flooring Carton Packaging Machine
The rated packaging capacity is 10–12 cartons per minute. Actual output depends on flooring dimensions, carton structure, upstream feeding conditions and system configuration.
The standard machine supports cartons with lengths of 600–1530 mm, widths of 120–310 mm and heights of 40–120 mm.
The machine is designed for standard plastic flooring packaging and can be configured for compatible SPC, LVT and PVC flooring products. Product suitability should be verified using actual dimensions, samples and carton drawings.
The specified changeover time is less than 10 minutes under standard operating conditions.
Yes. The machine uses five hot melt glue guns, including four for short-side sealing and one for long-side sealing.

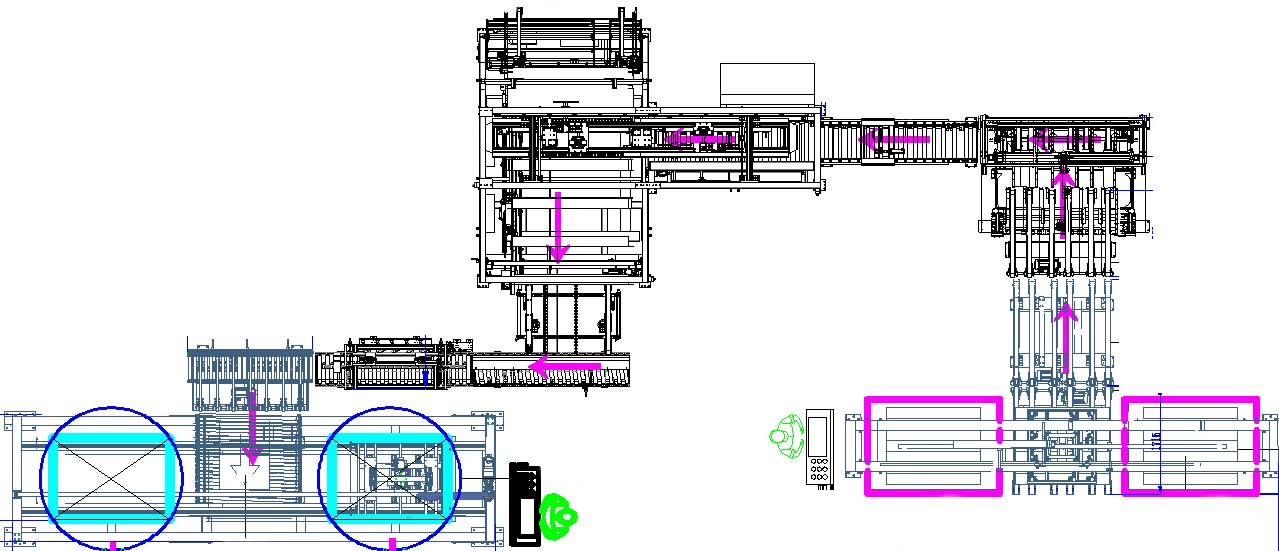

Yes. The equipment can be configured as part of an automatic flooring packaging line with conveying and palletizing systems.
Yes. Equipment combinations and layouts can be customized based on carton dimensions, product specifications, production capacity, installation space and automation requirements.
