Product Description

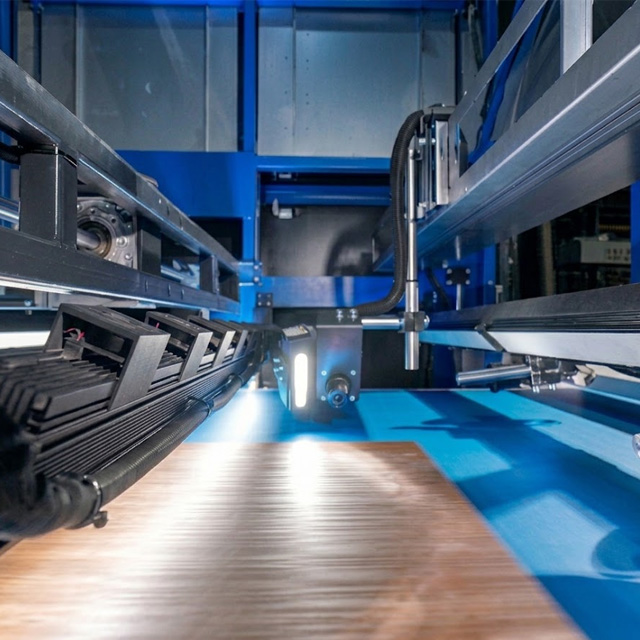

The Flooring Visual Inspection Line is an automated inspection solution designed for surface quality control in SPC, LVT, PVC and other compatible flooring production processes.
Using industrial imaging technology, controlled illumination and image analysis, the system can be configured to identify visible flooring defects such as scratches, stains, dents, surface contamination, printing irregularities and edge damage.
The inspection line can be customized according to flooring dimensions, defect inspection requirements, production speed and factory layout. It can also be integrated with conveying, sorting and downstream flooring packaging equipment.
The inspection system can be configured to identify common visible defects, including scratches, dents, stains, contamination and printing irregularities, using industrial imaging and image analysis.
The camera arrangement and illumination method are selected according to flooring surface texture, finish, inspection width and required defect visibility.
The inspection station can be designed for integration with compatible flooring conveyors, with positioning and product transfer matched to the production process.
Depending on the project, defect marking, alarm notification, manual review stations or automatic rejection mechanisms can be evaluated.
Where supported by the selected inspection software, defect records, product images and inspection statistics can assist with production monitoring and quality analysis.
The inspection equipment can be configured around different flooring specifications, production layouts, process requirements and downstream automation systems.
Different production lines may require top-surface inspection, bottom-surface inspection, edge inspection or a combination of inspection positions.
The station arrangement should be determined by the required defect types, product orientation and available installation space.
The visual inspection line can be designed to connect with existing conveyor systems or new flooring handling equipment.
Important engineering considerations include product spacing, conveyor speed, plank positioning, transfer height and line direction.
Depending on the customer's quality inspection process, the system can be evaluated with different defect-handling options, including automated sorting or manual review.
The rejection mechanism must be coordinated with the inspection software and conveying system to ensure that the correct product is handled.
A visual inspection line can form part of a larger flooring end-of-line automation project.

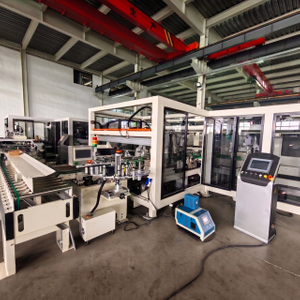

After inspection, qualified products can continue to stacking, carton packing, conveying and palletizing stations.
Different flooring products require different inspection methods. A high-gloss SPC plank, a wood-grain LVT plank and a deeply embossed flooring surface may present very different visual characteristics.
