Cushion Pad for Laminate Hot Press Machiine

  • HALLMARK

Availability:

Product Description

Cushion Pad for Hot Press Machine Overview



cushion pad 2

The silicone copper wire cushion pad is placed between the hot platen and press plate in short cycle hot press machine for transferring heating and buffering pressure ,so that we can extend the life of press platen and make your products encryption consistent,uniform and smooth.


Function:

1) Great anti-fatigue performance

2) High buffer performance

3) Uniform heat transfer

4) Long service life

5) Heat resistance


Use product:

1) plywood hot press machine;
2) multi-layer lamination hot press machine;
3) short cycle melamine lamination hot press machine;



Cushion pad  Photos



cushion pad-2

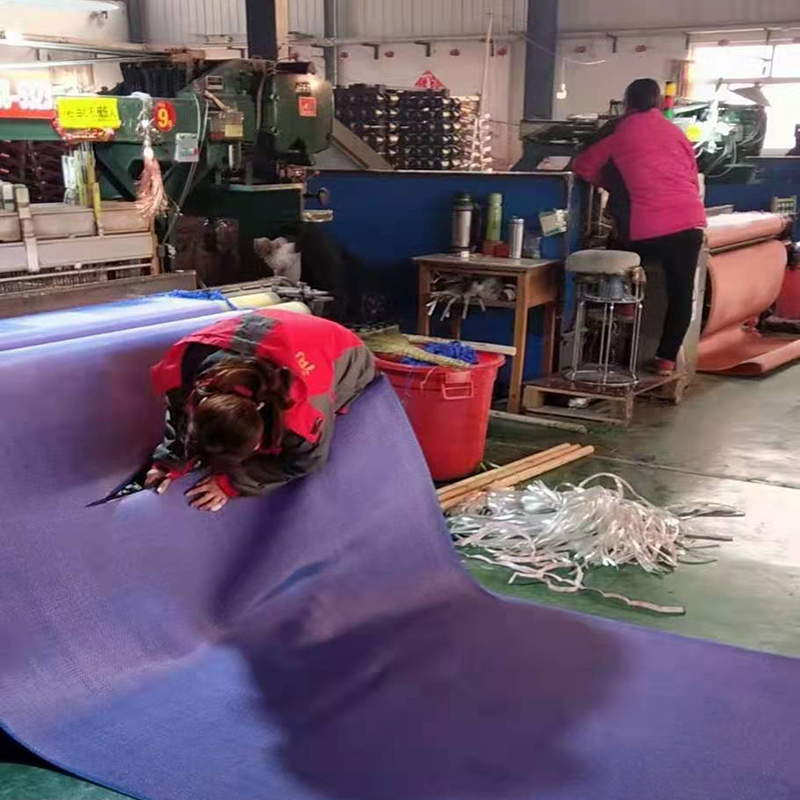

cushion pad machine

Cushion pad making machine

cushion pad machine 4

Cushion pad making machine

cushion pad machine2

Cushion pad making machine

cushion pad machine 3

Cushion pad making machine

cushion pad packing

Cushion pad delivery





Laminate Floor Hot Press Machine Main Parameters



Product name Cushion pad
Material Copper wire + silica gel
Silica gel content 40%
Copper wire content 60%
Heat resistance ≤250℃
Copper wire quantity 7/8/9/10/11 wires
Breaking Elongation of Silicone 310%
Tensile Strength of Silicone 17 N/mm
Thickness 2.3-2.8 mm
Size Can be customized


(Above technical parameters just for reference,will design according to actual situation)




Laminate Floor Structures




laminate flooring (1)



 Laminate Floor Advantages


flooring advantage


  • Easy Installation

    Laminate flooring is ideal for do-it-yourselfers and is quite simple to install, saving you even more money on installation costs.



  • Durability

    Another big positive is laminate’s durability. It’s a tough flooring material that holds up well to pets and heavy foot traffic.

    Laminate flooring is resistant to scratches, stains, and just about any other damage. A laminate floor can last for years to come.

    Laminate is also pretty water-resistant, great quality for a kitchen floor; you don’t have to worry about a few drops hitting the floor while cooking, loading the dishwasher or if your puppy has a little accident.



  • Easy Cleaning and Maintenance

    Laminate is made largely out of plastic, making it very easy to clean. It also comes in a wide variety of styles that are easy to maintain and keep looking beautiful for years to come.

    Laminate flooring is very easy to care for, making it the perfect choice for families with children or pets.



  • Unique Design

    As mentioned, laminate is a very affordable flooring option. That means that you can get a beautiful floor without breaking the bank.And, because laminate floors are so durable and long-lasting, you won’t have to replace them every few years as you will with some of their inferior counterparts!

    Laminate floors are quite reasonably priced when compared to other types of floors such as Luxury Vinyl or carpet.



  • Easy to Remove If Needed

    When relocating, you can easily remove a laminate floor and put in another floor covering. This is an advantage when removing the old flooring and installing the new one. Laminate floors can be removed, transported, and reinstalled with ease.



  • Environmentally Friendly

    Made from materials that help reduce greenhouse emissions, laminate floors leave a little carbon footprint on the environment.Laminate floors are also made out of recyclable materials, making them eco-friendly flooring options.





What is the whole Laminate Floor Production Line ?


laminate flooring production line

  1. Hot Press Line


    The overlay paper, decorative paper, HDF board and balance paper are pressed together through short cycle press with high pressure,high temperature and short cycle time.



  2. Cutting Line


    Cutting machine to cut board into some several small boards.First cut a big board into two pieces by transverse saw, and then through steering roller conveyor feed into left or right or both sides multi rip saw to cut into required specifications small boards.



  3. Double end Tenoner Line


    Double end tenoner line is mainly applicable to the continuous production of laminate flooring.This line includes feeding rolling table,longitudinal double end tenoner and transverse double end tenoner..


    This line is used for grooving laminate flooring,both long side and short side.Advanced design, simple structure, easy operation, intensive automation and reliable performance.



  4. V Groove Painting Line(optional)


    Used for the floor V-groove, use water-based paint,first short side coating and drying, then long side. The floor with paint improved waterproof properties, which is beneficial to the floor of the joining together.



  5. Wax Sealing Line


    Make full use of all the grooves of the wooden floor to ensure waterproof and facilitate the connection of the floor. Reduce damage to materials caused by oxidation or contact with harmful substances in the air. More importantly, the mirror-bright surface formed by it is particularly durable and can prevent damage from detergent.



  6. Packing Line


    This packing line is widely used in laminate flooring, furniture, and line packing industries. It can pack, seal and cut products such like carton automatically. And after cutting it will shrink through shrinking machine to look more beautiful and proof water.



  7. Stacking Line(optional)


    To complete automatic wrapping of packed final finished products in stacking area for stacking so as to ensure convenient transportation.




Our Projects



laminate flooring production line



Our services





Pre-sale

●Provide the information in time at customer requirement and make reasonable proposals and budgeting for whole flooring production line.

●Give technical support for the customer's renovation of old facilities for free

●Provide one-stop service and support to the customer's other equipment


●Provide raw material related consultation


In-sale

●On-site planning for the customers by professional engineer



●Valuable advice and recommendations on the purchasing of other auxiliary accessories and raw material



●Free training for operators



After-sale

●For all sold products ,free replacement of quality problems within the warranty period,provide lifetime keep-up and maintenance service


●All-around keep-up,transportation and transformation of equipment


●Provide production and technical advisory service


●Provide on-site installation, debugging , training and remote guidance services,







Why choose HallMark as your supplier?



  1. Rich experience and professional design

    We have 15 years experience in flooring industry,also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet  safety production.


  2. Competitive price


    HallMark has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.


  3. Timely after-sale service

    We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions within 8 hours.


  4. One-stop solution

    We provide one-stop service, including market analysis and professional technical consultation,whole SPC  flooring production line, raw materials ,Equipment installation, personnel training,Professional after-sales service team,Renovation of old equipment,make turnkey projects.


  5. Quality control

    Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.


  6. Customized

    HallMark's engineer team will design the layout according to customer’s factory space and production requirements.
